THE RE SERIES

Small engine. Big power.

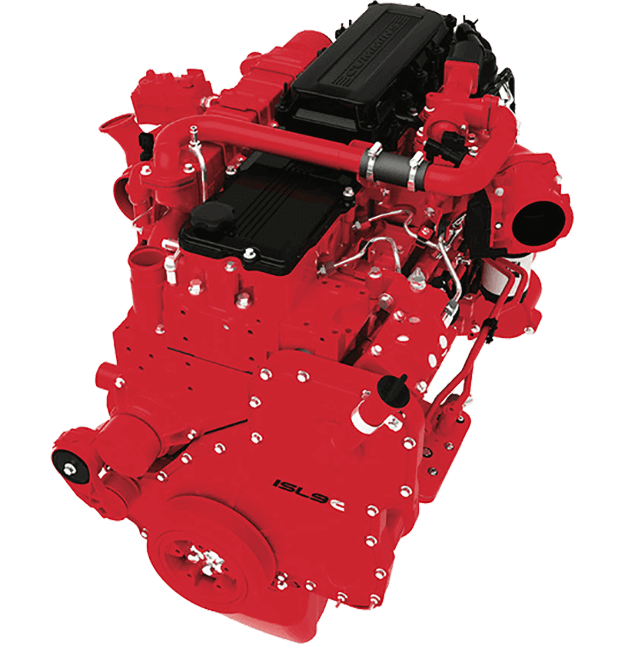

We wanted to build a bus that could move 52 passengers in the most cost-efficient way possible. So we built it around the Cummins L9 wet-sleeve diesel engine, a legendary engine known for outstanding performance, efficiency and durability. It produces more power than larger, heavier engines.

So if you need a bus that moves more people more efficiently, we've got you covered. And the Cummins L9 saves you time, too. Its even-cooling wet-sleeve design and durability let it work harder and longer between maintenance. The Cummins L9 is the ideal match for the RE Series, with its sturdy steel cage construction, one-piece roof bows, solid steel flooring and 16-gauge steel exterior panels. The RE Series is full of comfortable features for passengers and driver: Radio AM/FM with CD player, available Wi-Fi and Satellite TV, slip-proof floor, tilt and telescopic steering wheel, and ambient temperature controls and directional display – plus a long list of optional equipment.

The RE Series is designed for maximum convenience in maintenance and servicing. Daily inspections are made easy from the rear of the bus with the side-mounted radiator and rear-facing fluid checkpoints. Two engine access doors provide side and rear engine access. A simplified flasher panel allows easy inspection and servicing. The instruments are fully electronic and self-testing, with visual and audible alarms. And even the battery box slides out on nylon rollers. As with every bus we make, IC Bus has you covered throughout the entire ownership experience with our complete bus diagnostic checkup computer system, an expansive parts distribution system and an unmatched dealer network for 24/7 support.

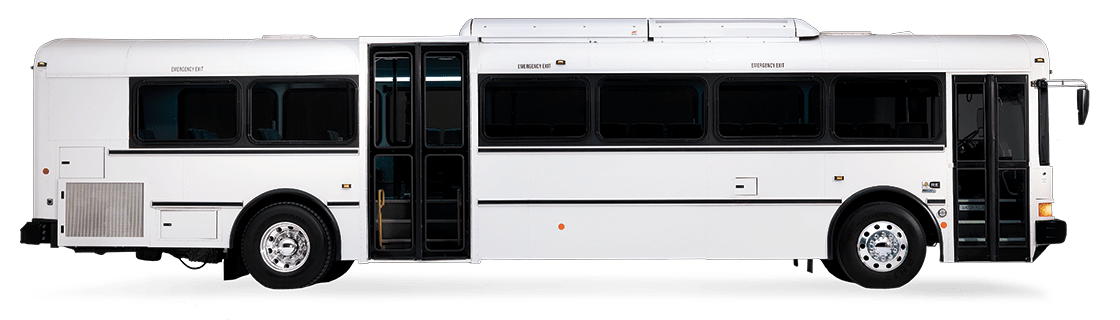

RE Series Specifications

Chassis

  • IC Bus™ chassis with rust inhibitor and sound-deadening package

  • Cummins L9 wet-sleeve diesel engine

  • Allison 3000 automatic five-speed transmission

  • Soft ride parabolic front suspension

  • Air-ride rear suspension with dual leveling valves

  • Air brakes with anti-lock, air dryer

  • Tires 11R22.5

  • 30,500-37,000 lbs. GVWR

Engine

  • Cummins L9

Body

  • 96" wide

  • Black steel powder coated rear bumper

  • 5/8" CDX plywood floor

  • Large transit oval windows

  • Entry door stanchion with entrance grab rails

  • 33" (clear opening) outward opening door

  • Solid steel flooring sections

  • 20-gauge galvanized painted steel interior with full-length acoustical headliner

  • 16-gauge galvanized steel exterior panels, smooth finish with minimum exposed fasteners

  • Galvanized steel cage construction with one-piece roof bows

  • Aluminum rub rails with rubber inserts

  • Up to 52-passenger capacity

  • Front and rear commercial caps, accommodation for large front destination sign

Systems

  • Roof-mounted HVAC System

FEATURES

Koroseal flooring, slip-proof aisle, coved up the wall

Transit style seats

Tilt and telescopic steering

Parking brake alarm

Ambient temperature controls and directional display

Driver’s air seat

Radio AM/FM with CD player

Driver’s storage compartment

Driver’s vestibule dome light

OPTIONS

Roof- or skirt-mounted factory-installed IC Air

Free blow or ducted air conditioning and heat

Front air-ride suspension with dual leveling valves

Allison B400

Energy absorbing rear bumper

Graphics and paint

Aluminum wheels

LED exterior lighting

Dual outward opening lift doors

Sedan style entry door

Power, heated mirrors

Backing and surveillance camera systems

LED interior lighting

Electronic and manual roller signs

Audio and video system with PA

Perimeter or forward facing seats

Three-point seatbelts

Overhead parcel rack reading lights

48" center exit door with accommodations for in-step lift

Cold weather package

Pass-through under vehicle storage

Wi-Fi

Satellite TV

Lavatory

ADA-compliant wheelchair lift

Up to 100-gallon fuel tank
